YN1325L

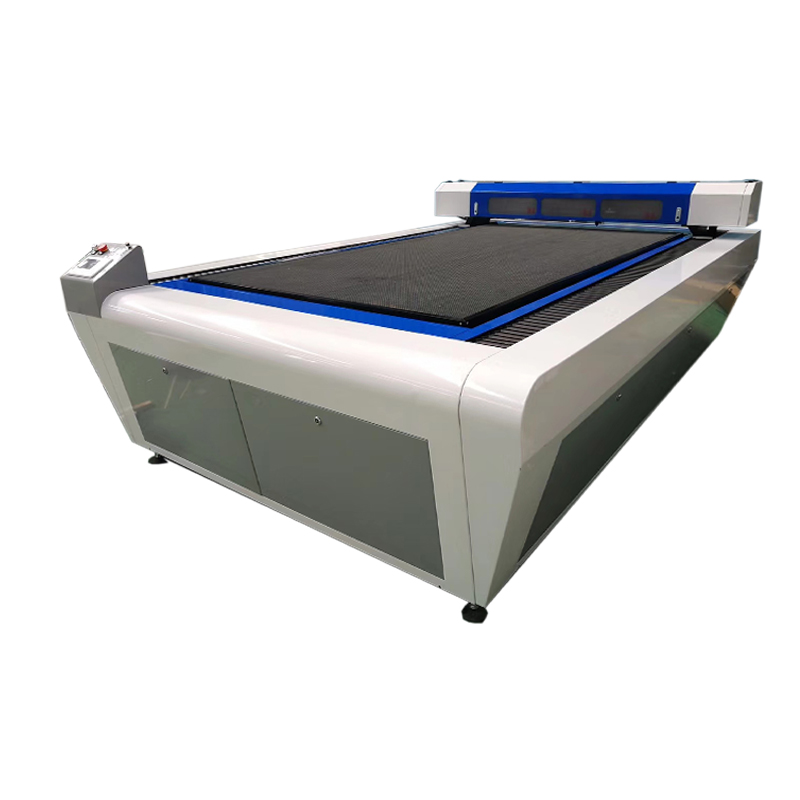

1325 Co2 Laser Cutting Machine
Application : Laser cutting &engraving for non-metals
Working area:1.3*2.5m or 1.5*3.0m
Laser Type :Co2 laser,
Laser Power : 80W/100W/130W/150W
Machine Features
✦ Drive system with high precision linear guide and slide block, high precision ,wear resistance, small resistance, high speed;arc-gear synchronous belt 3m,stable transmission, strong shock absorption ability and small noise.
✦ Red cross accurate position, convenient and quick in finding engraving and cutting position.
✦ Equipment with automatic / manual modulation focused laser head, responsive and accurate to ensure sculpture quality.
Technical parameter |
|
Model |
YN-1325 |
Working size |
1300*2500mm |
Accuracy |
±0.05mm |
Laser power |
100W/150/180W |
Cooling type |
Water cooling |
Y axis guide rail |
Taiwan Hiwin Square Linear |
Engraving speed |
0-60000mm/min |
Cutting speed |
0-40000mm/min |
Power supply |
AC220±10%,single Phase 50Hz |
Operating System |
DSP Offline control system |
Driving system |
Stepper |
Software supported |
Photoshop,Coreldraw,AutoCAD |
Graphic Format |
BMP, DST, GIF, TGA, AI, PLT, DXF, LAS |
Working Temperature |
0-45 ℃ |
Relative Humidity |
30%-75% |
