VB
Channel letter bender could feeding, slotting and bending arcs according to the letter design automatically. With higher working precision and efficiency. They are more and more popular in sign industry now, as they can improve the working efficiency, and one machine can save 4 workers' labor cost.

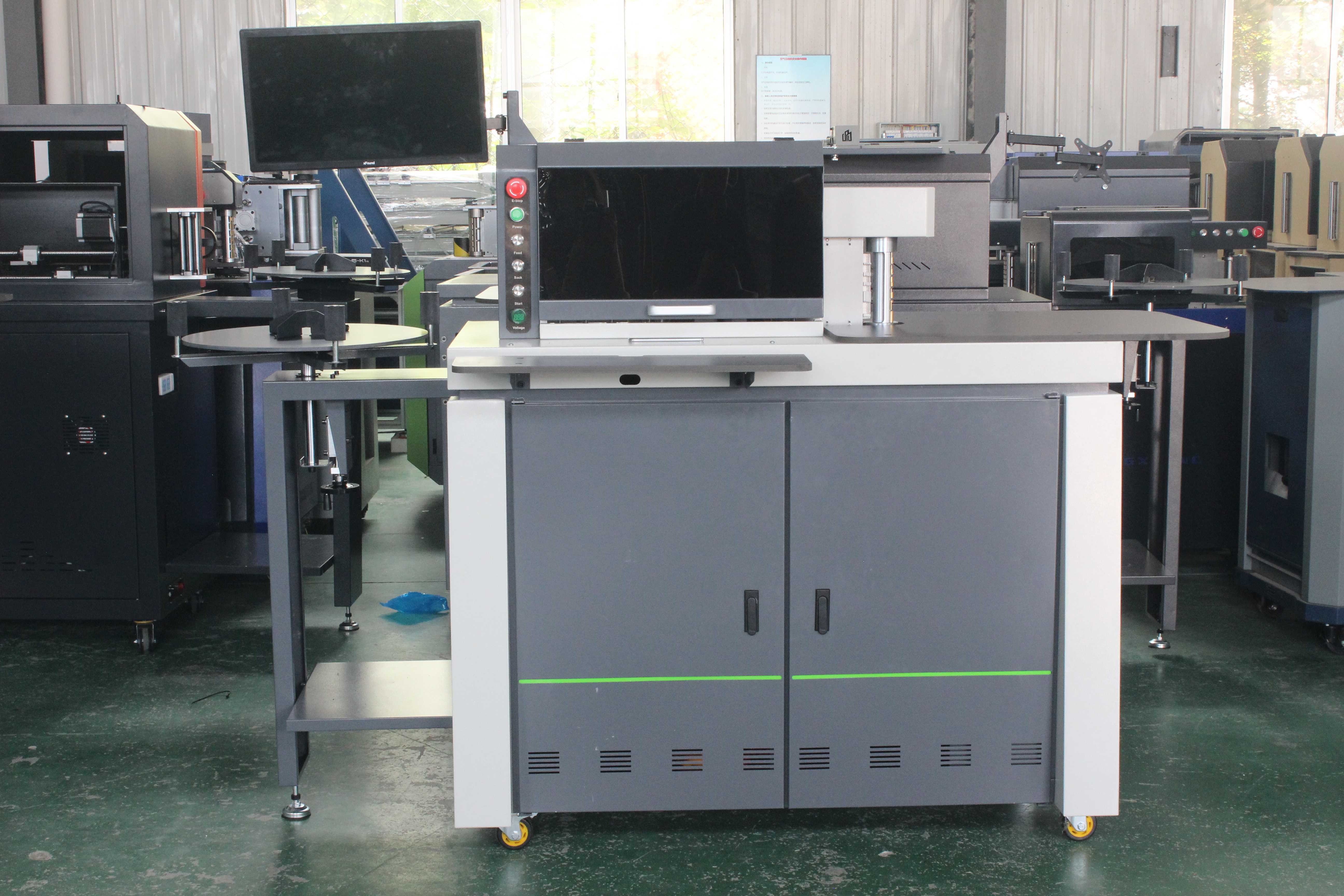

This is VB model, suitable for stainless steel coils and flat aluminum coils, channelume, parameters are as below：
|
Parameter |
|
|
Operation principle |
Automatic feeding，slotting and bending |
|
Slotting part |
Vertical V-shaped slotting |
|
Available material |
Stainless steel，galvanized iron, all flat material |
|
Driving Motor |
Servo motors for slotting and bending part |
|
Bending radius |
≥10mm |
|
Material width |
≤120mm |
|
Material thickness |
Stainless steel≤1mm Flat aluminum : 0.3-1.0mm thickness |
|
Power |
≤1000W |
|
Voltage |
220V,1ph,50HZ |
|
Working Air pressure |
0.6Mpa |

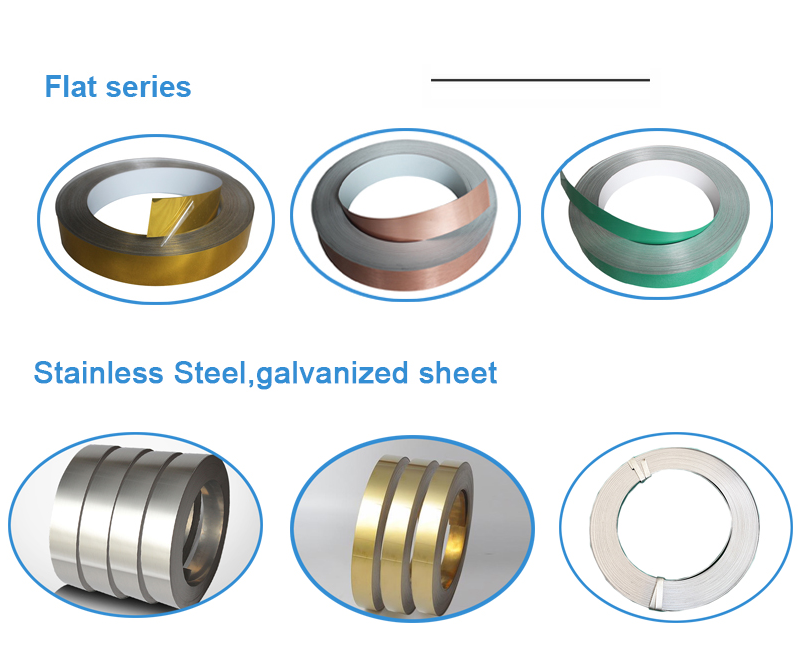

Applied materials
